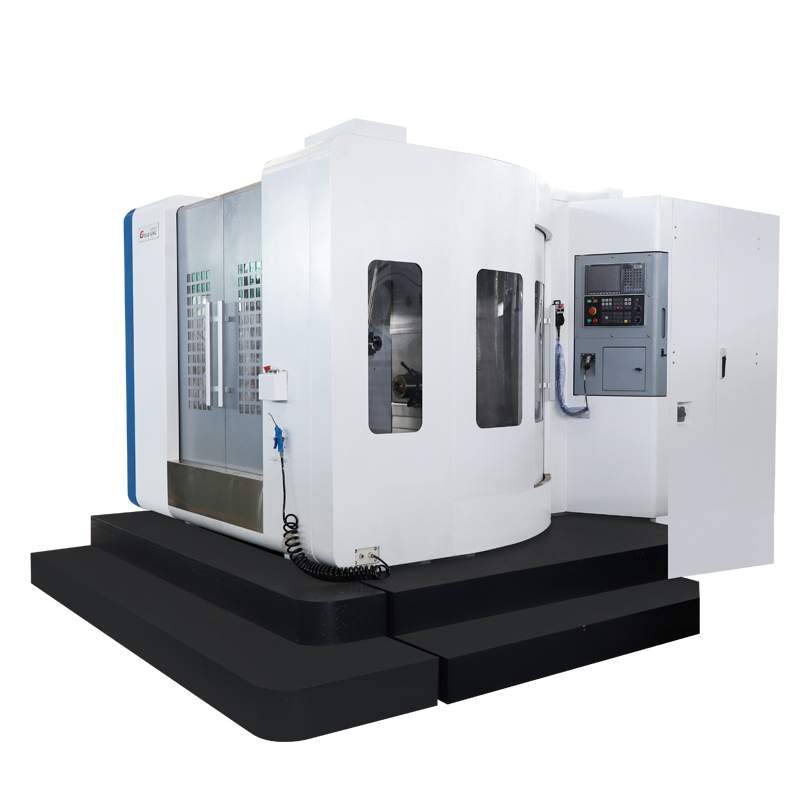

The HMC Horizontal Machining Center is designed for efficient and precision machining of box-shaped parts, structural components, and complex metal components. Its horizontal spindle configuration and Ø650 mm DD direct-drive rotary table enable efficient multi-face machining while reducing repeated workpiece setup.
The machine features a high-rigidity Meehanite cast iron structure with a reinforced design, providing stable performance during heavy-duty machining operations. Its robust construction helps maintain machining accuracy and reliability during demanding production processes.
With a maximum rotary table load capacity of 300 kg, the HMC is suitable for machining a wide range of box-type components, including gearbox housings, pump bodies, valve bodies, hydraulic components, machine bases, motor housings, and other structural metal parts.

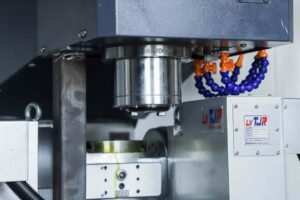

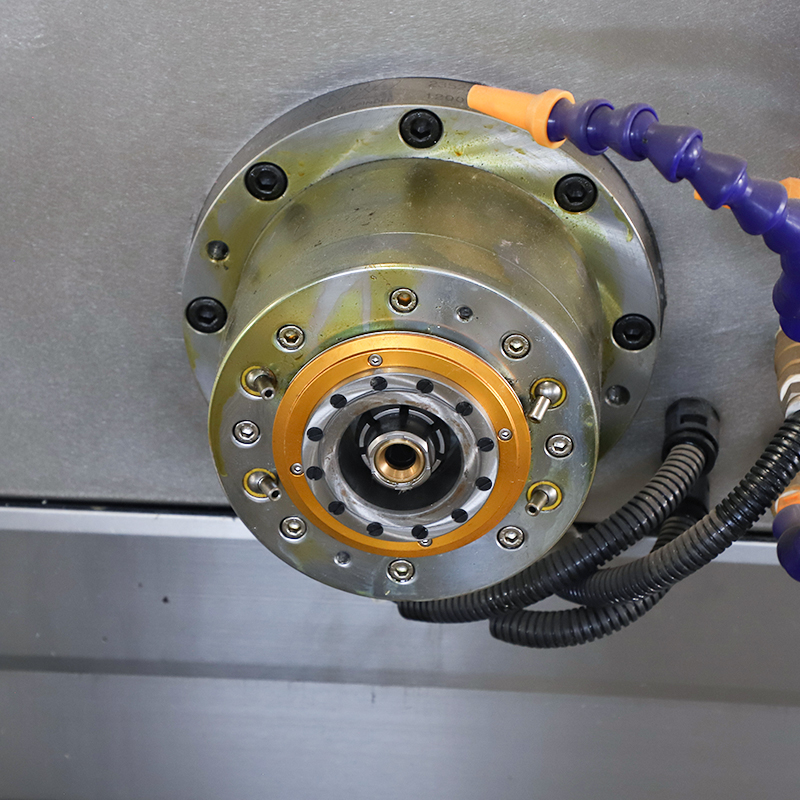

The machine is equipped with a 12,000 rpm spindle, 30 m/min rapid traverse, and precision linear guideways to support efficient and accurate machining. Its horizontal configuration allows multiple faces of a workpiece to be processed efficiently, helping reduce setup time and improve overall production efficiency.
| Specification | Value |
|---|---|
| Rotary Table Size | Ø650 mm |
| Maximum Load Capacity | 300 kg |
| Rotary Table Type | RAS-650 |
| Rotary Table Accuracy | ±15 arc sec |
| X-Axis Travel | 820 mm (Left: 500 mm, Right: 320 mm) |
| Y-Axis Travel | 520 mm |
| Z-Axis Travel | 500 mm |
| Distance from Spindle Center to Guideway | 187 mm |
| Distance from Spindle Nose to Table Surface | 150–650 mm |
| Spindle Taper / Mounting Size | BT40-150 |
| Spindle Speed | 12,000 rpm |
| X/Y/Z-Axis Ball Screw Specification | 4012 |
| X/Y/Z-Axis Linear Guideway | 45 mm Roller Guideways |
| X/Y/Z-Axis Rapid Traverse Rate | 30 m/min |
| X/Y/Z-Axis Motor Connection | Direct Coupling |
| Main Motor Power | 9 kW |
| X/Y/Z-Axis Motor Torque | 16 / 16 / 20 N·m |
| Positioning Accuracy | 0.005 mm |
| Repeatability | 0.003 mm |
| Tool Magazine Specification | BT40-24T |
| Machine Bed Pad Height | 50 mm |
| Overall Dimensions (L × W × H) | 3900 × 3700 × 3100 mm |
| Machine Weight | 10,500 kg |

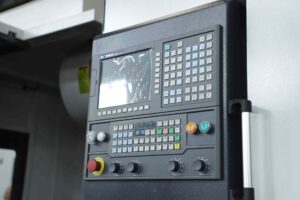

Offers a range of CNC system options, including FANUC, GSK, Siemens, Mitsubishi, and others. The operating interface supports multiple languages, such as Chinese, English, Spanish, and Russian.
High rigidity — stable, vibration-free operation during heavy-duty cutting. High speed — suitable for both roughing and finishing. High precision — helps reduce the scrap rate.

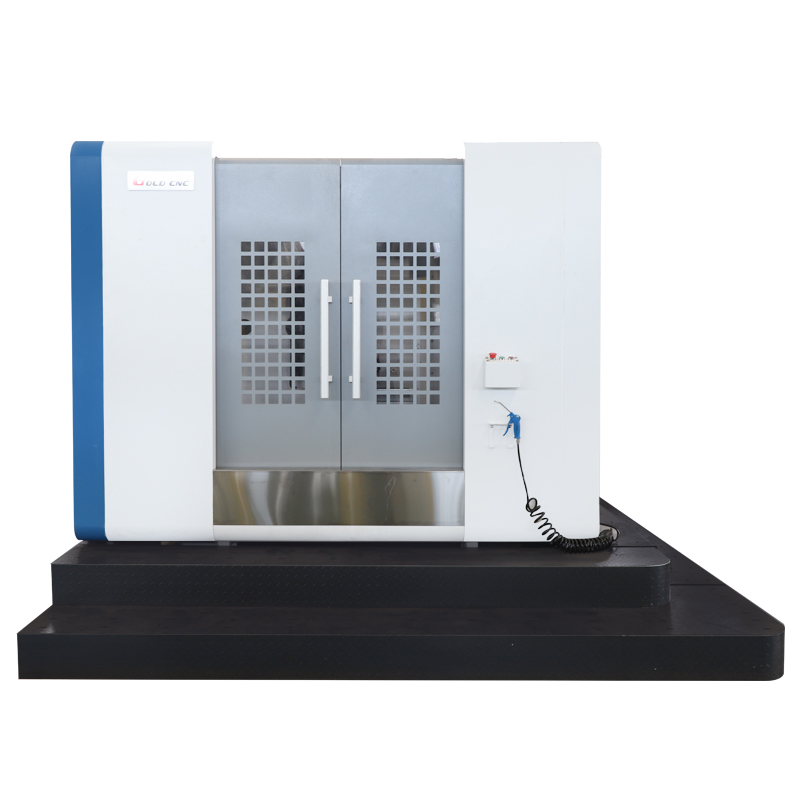

The equipment features an all-metal enclosure. With a sheet metal thickness of 2 mm, far exceeding market standards, it ensures maximum safety for operators during operation.

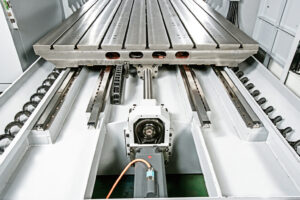

The use of high-precision HIWIN (Taiwan) linear guideways and ball screws significantly enhances positioning accuracy. The system ensures exceptional motion smoothness, free from jerking or stick-slip, and supports rapid traverse speeds of up to 24, 36, or 48 m/min.
The HMC Horizontal Machining Center is suitable for precision machining of various box-shaped, structural, and complex metal components. Its horizontal spindle configuration and multi-face machining capability make it suitable for:
