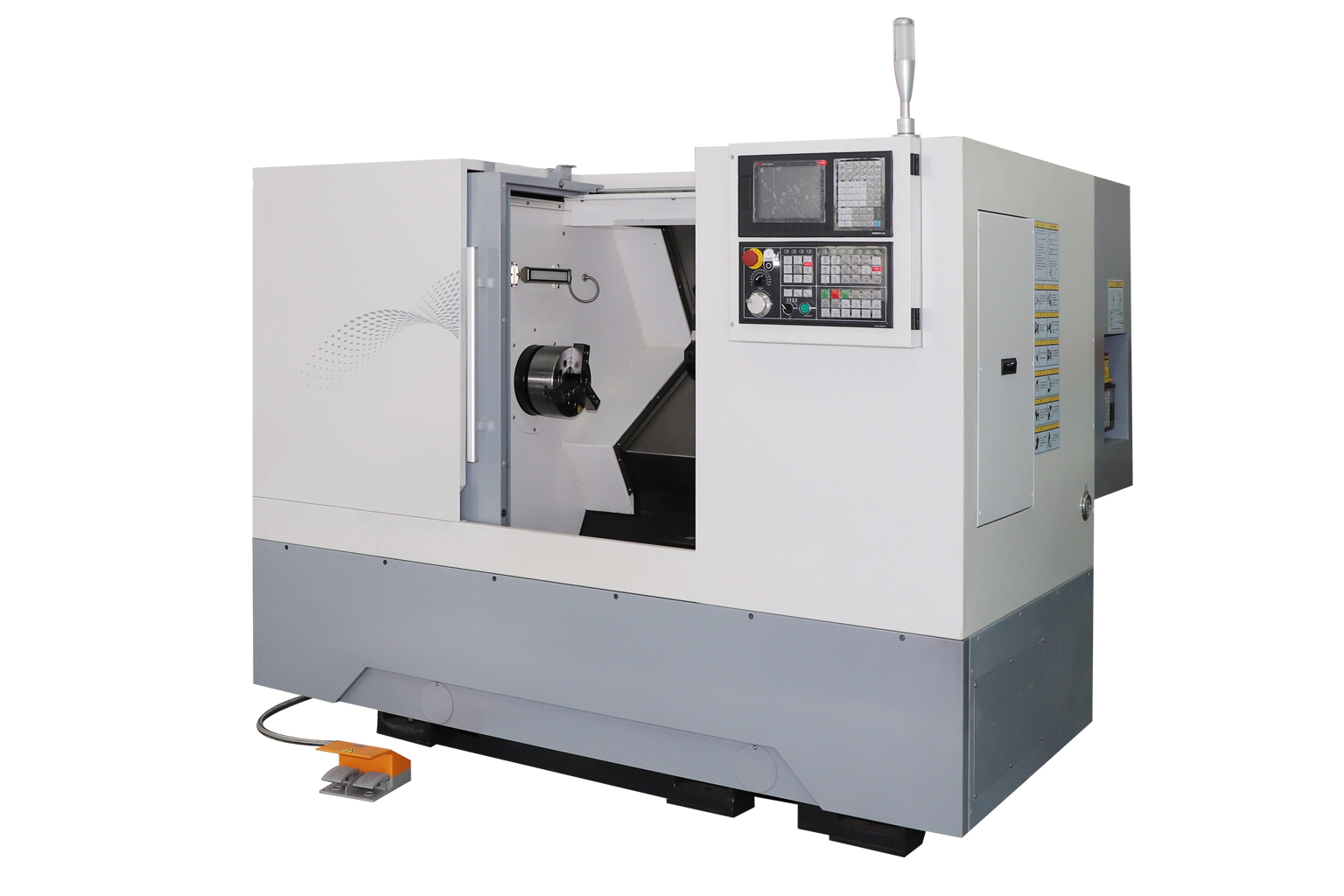

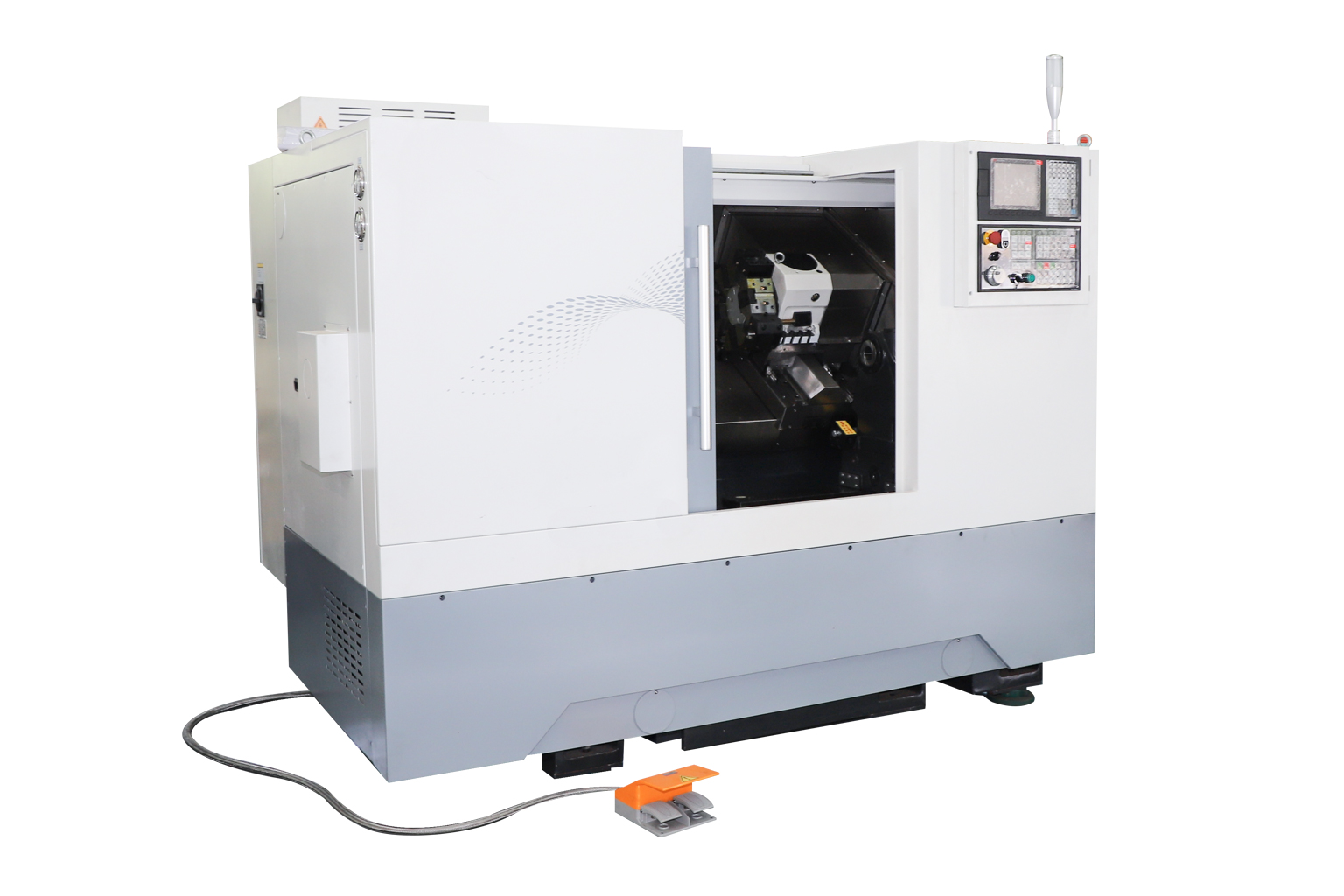

TMC-8Y-8YL CNC Turn-Mill Machine integrates turning, milling, drilling and tapping with Y-axis and C-axis capabilities for efficient machining of complex metal components.
The TMC-8Y-8YL CNC Turn-Mill Machine integrates turning, milling, drilling and tapping capabilities into one machine. With Y-axis travel, full C-axis motion and high-performance live tooling, it provides a versatile turn-mill solution for machining complex metal components.
Compared with a conventional CNC lathe, a turn-mill machine can perform multiple secondary machining operations in a single setup. This reduces workpiece transfers and re-clamping between machines, helping shorten cycle times while improving machining accuracy and production efficiency.
| Category | Specification | TMC-8Y-I | TMC-8Y-II |
|---|---|---|---|
| Bed | Bed form and inclination | Integral / 30° | Integral / 30° |
| Maximum turning diameter of bed | Φ650 mm | Φ650 | |
| Max Part Swing | Φ370 mm | Φ380 | |
| Maximum processing length | 450 mm | 680 | |
| Spindle | Spindle Nose | A2-6 | A2-6 |

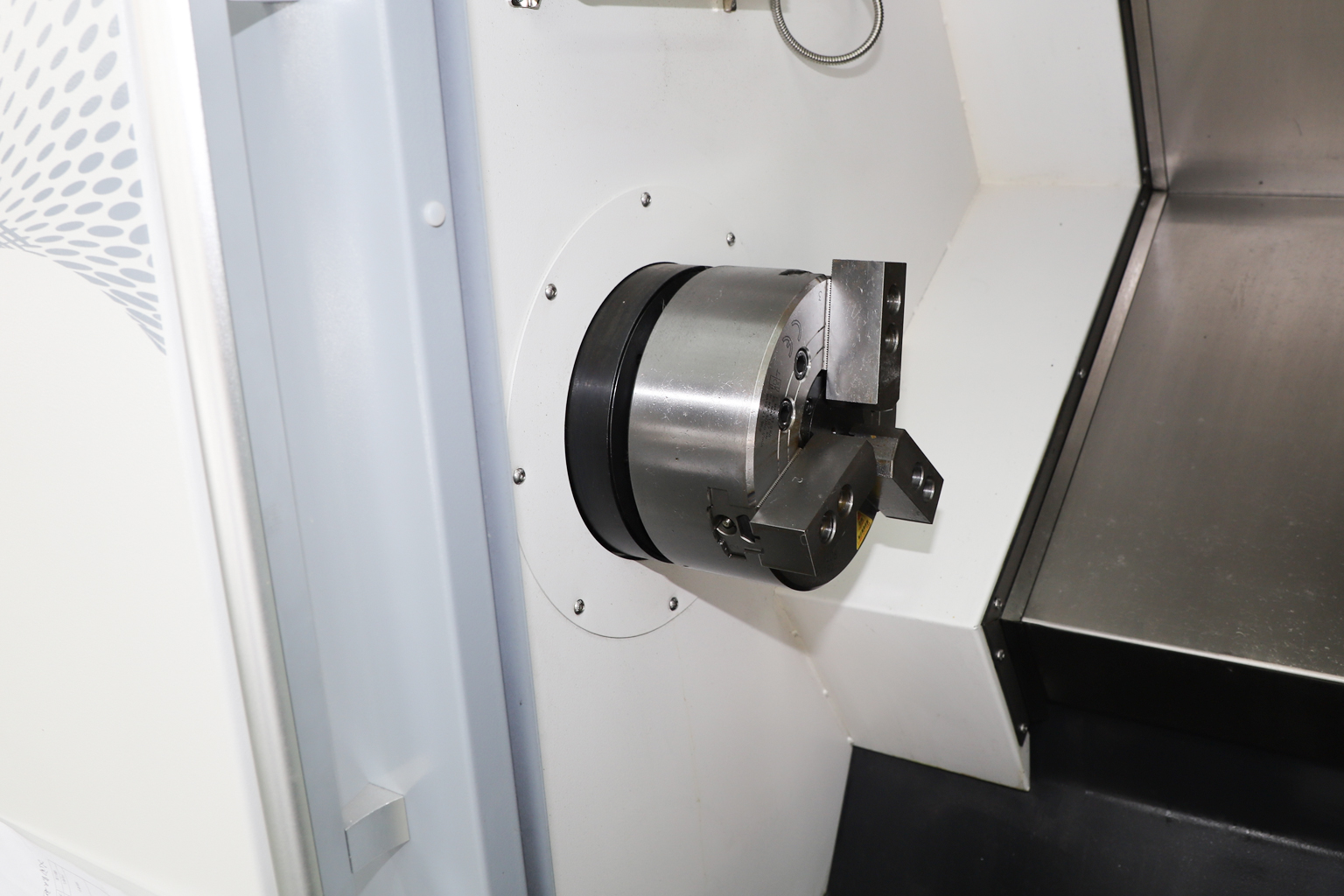

| Chuck Size | 8″ (203 mm) | 8″ (203 mm) | |
| Spindle Motor Power | 11 kW | 15 kW | |
| Spindle Max Speed | 4200 rpm | 4200 rpm | |
| Spindle Hole Diameter | Φ66 mm | Φ66 | |
| Bar Diameter | Φ52 mm | Φ52 | |
| Feed | X/Z Axis Screw Specification | 3210 / 4010 | 3210 / 4010 |
| X-Axis Travel | 270 mm | 270 | |
| Shaft Motor Torque | 11 N·m | 11 N·m | |
| X/Z Axis Rail Specification | 45 / 45 | 45 / 45 | |
| Z-Axis Travel | 610 mm | 810 | |
| Z-Axis Motor Torque | 11 N·m | 11 N·m | |
| X/Z Axis Connection Method | Direct | Direct | |

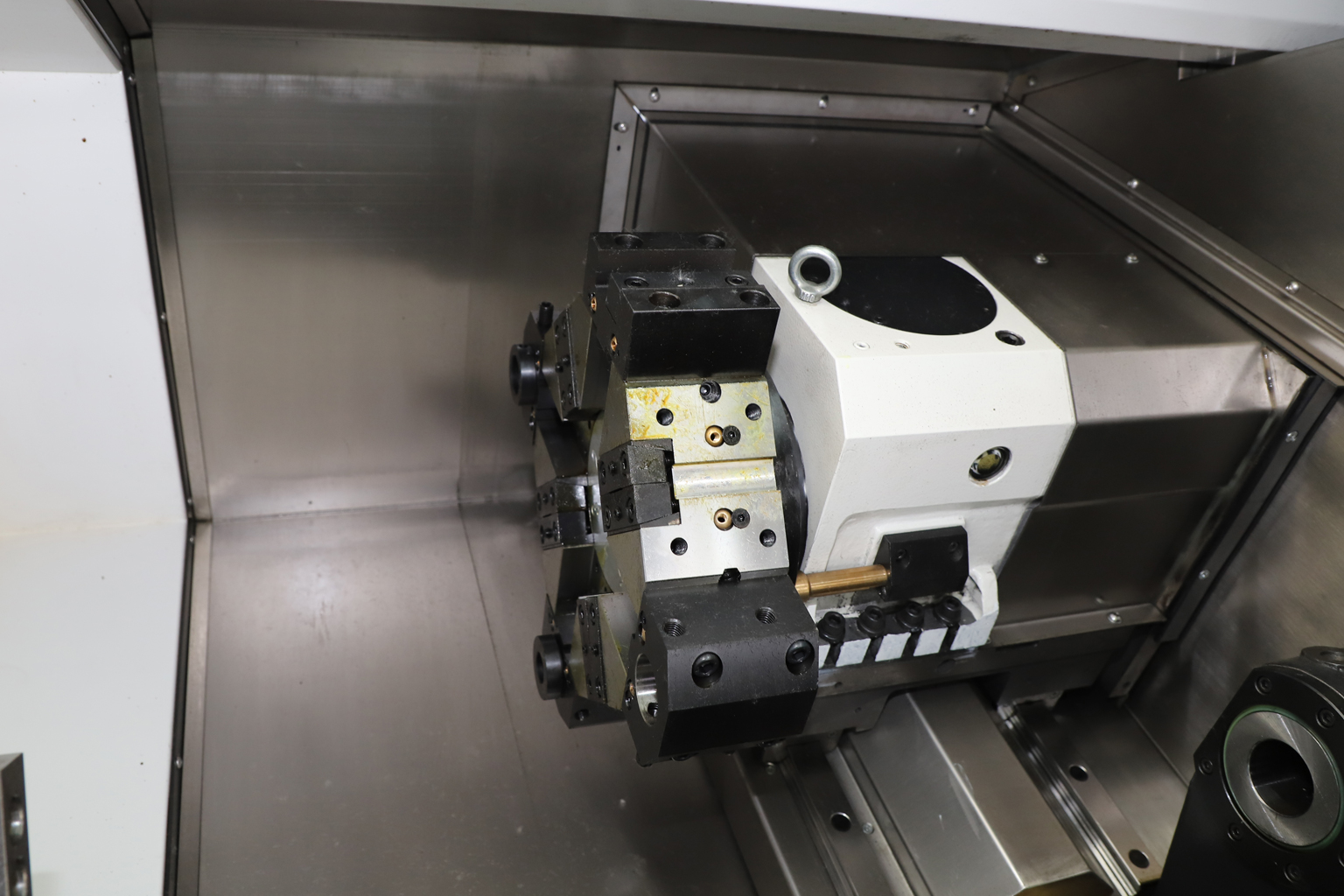

| Y-Axis | Knife Tower | BMT55 Power Turret | BMT55 Power Turret |
| Turret Center Height | 160 mm | 160 mm | |
| Travel | ±40 mm | ±40 mm | |
| C-Axis | C-Axis Indexing | 360° | 360° |
| Tailstock | Socket Diameter | 80 mm | 80 |
| Socket Travel | 80 mm | 80 | |
| Maximum Stroke | 480 mm | 720 | |
| Sleeve Taper | Morse 5# | Morse 5# | |
| Dimensions | L × W × H | 1800 × 1320 × 1438 mm | 2100 × 1386 × 1435 |
| Weight | N.W. / G.W. | 2500 / 2700 kg | 2700 / 2900 kg |
The provided content does not include a separate detailed Application Industry list for this product.
Based on the supplied description, the TMC-8Y-8YL is intended for complex metal components requiring multiple operations such as:
The machine is particularly suited to parts where multiple machining operations can be completed in a single setup.
A CNC turn-mill machine combines turning, milling, drilling and tapping capabilities in one machine, allowing multiple machining operations to be performed on the same workpiece.
